ATE400 indoor Magnetic induction wireless temperature sensor for busbar switch cabinet cable joint

Name: ATE400 indoor Magnetic induction wireless temperature sensor for busbar switch cabinet cable joint
Brand: Acrel
Price: 45.00 USD

Quality ATE400 indoor Magnetic induction wireless temperature sensor for busbar switch cabinet cable joint wholesale

Certification : CE

Place of Origin : Jiangsu, China

Brand Name : Acrel

Model Number : ATE400

MOQ : 1 Piece

Price : $45.00 / Piece

Warranty : 3 years

Customized support : ODM

Wireless Frequency : 868MHz

Communication Distance : 150m in open area

Transmission Frequency : 4min

Installation : bundled

Application : Joints between bus bar and cable

humidity : ≤95%

Atmospheric pressure : 86kPa~106kPa

Temperature : -40℃~125℃

Samping frequency : 25s

Certificate : CE ISO9001

Selling Units : Single item

Single package size : 2.3X10.2X4.8 cm

Single gross weight : 0.100 kg

Package Type : It is packed in a crash bag and then put into a cardboard box.

Contact Now

ATE400 indoor Magnetic induction wireless temperature sensor for busbar switch cabinet cable joint

ATE400 Wireless Temperature Sensor

● Small size; ● Wireless transmit; ● Wireless transmission distance, 150 meters; ● Fase sampling frequency,15s; ● CT-powered,more than 5A starting current; ● Widely temperature measuring range, -40℃~125℃.

ATE400 wireless temperature sensor has been developed in compliance with Specification for Wireless Temperature Measuring
equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears,
fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and
drawer switchgears.

Technical parameters

Item			Value
Wireless temperature measurement	Wireless frequency	868MHz
		Communication distance	150m in open area
		Sampling frequency	25s
		Transmission frequency	4min
		Power source	Battery
		Installation	Bundled
		Range of temperature	-40℃~125℃
		Precision	±1℃
		Application	Joints between bus bar and cable
Environmental requirement	Operating temperature	-40℃~125℃
		Relative humidity	≤95%
		Atmospheric pressure	86kPa~106kPa

APPEARANCE

Installation

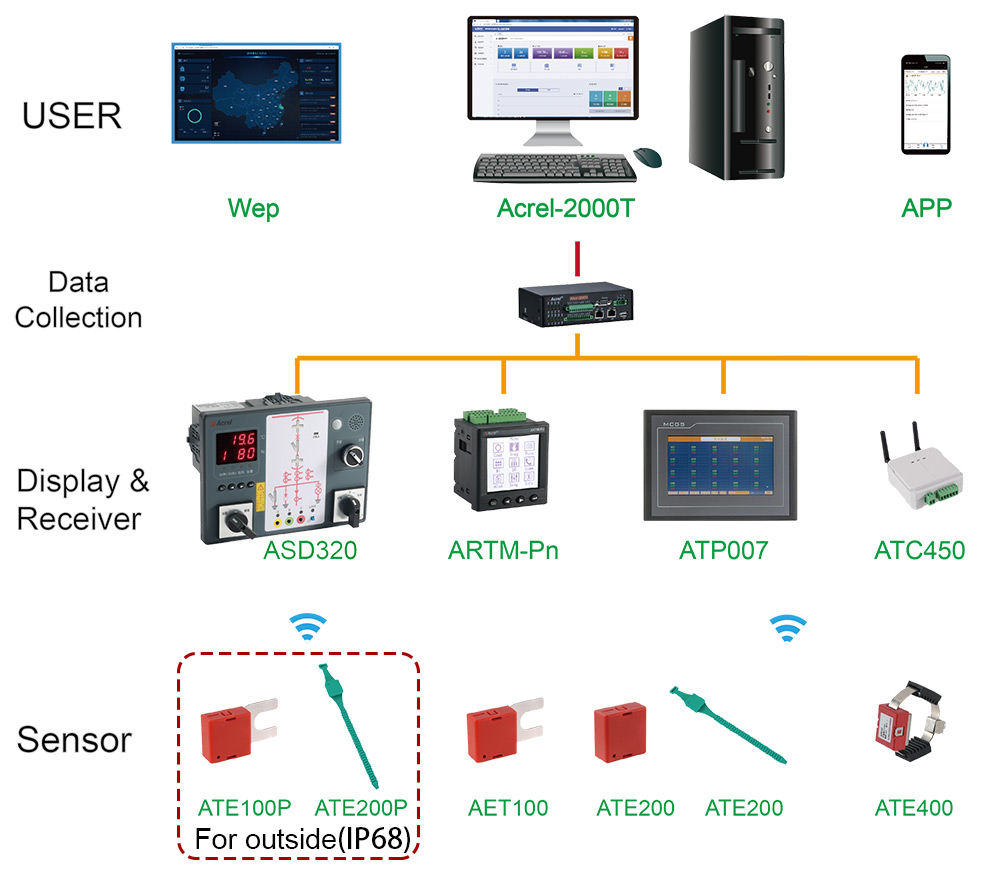

Typical connection

Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd., the manufacturer base located in Jiangyin, Wuxi City, is a pioneer
enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test
center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and
reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets.

Acrel Co.,Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.
